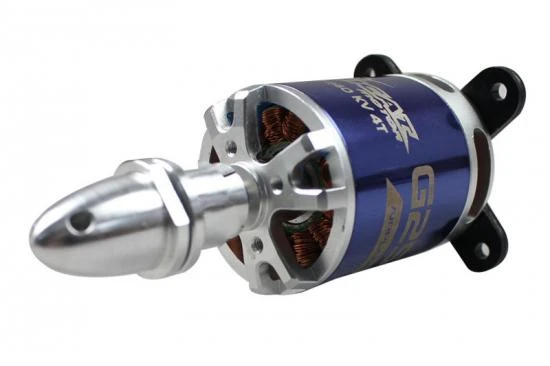

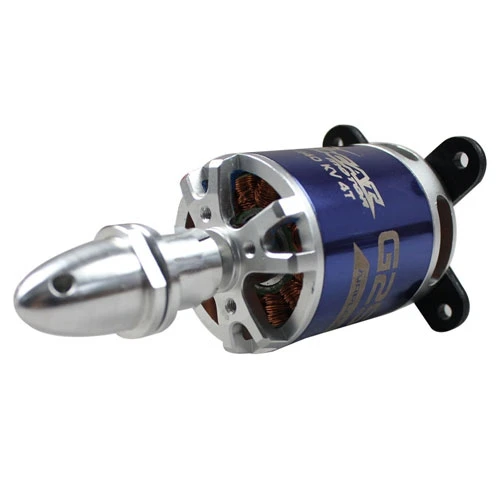

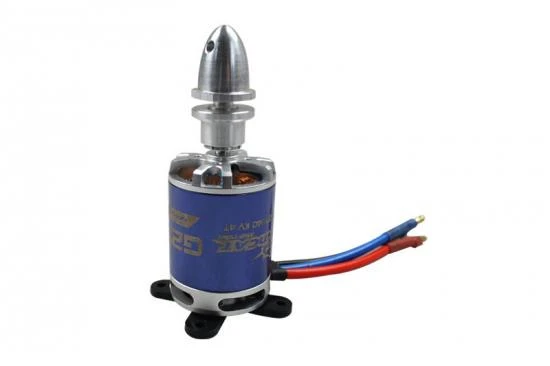

CML Racing Tomcat G25 Motor For 25 Class Airplanes

TOMCAT G25 MOTOR FOR 25 CLASS AIRPLANES

Superior design and sophisticated manufacture process render the motors an excellent acceleration performance , overload capacity and higher operating efficiency.

Spec Check:

• KV(rpms per volt):  1140
• No load current:   3.2 A @10V
• Resistance:  0.016 ohms
• Watts:  up to 860
• Continuous Current:  48A
• Max Burst Current:  56A,10seconds
• Cells:  3–4 S Li-Po
• Recommended Props:  8×6 to 10×10
• Slots,Poles:  12,14
• Diameter:   35 mm
• Shaft: Diameter   5.0 mm
• Weight:  180 g
• Brushless ESC:  60A
